The Story
- 1010 watt motor
- LED work light
- 55mm Routing stroke, 50mm Bench opening
- Idle engine speed: 9ā 500 - 23ā 000 minā»Ā¹
- Parallel side fence for straight and accurate cuts
- Routing depth adjustment, accurate to 1/10 mm

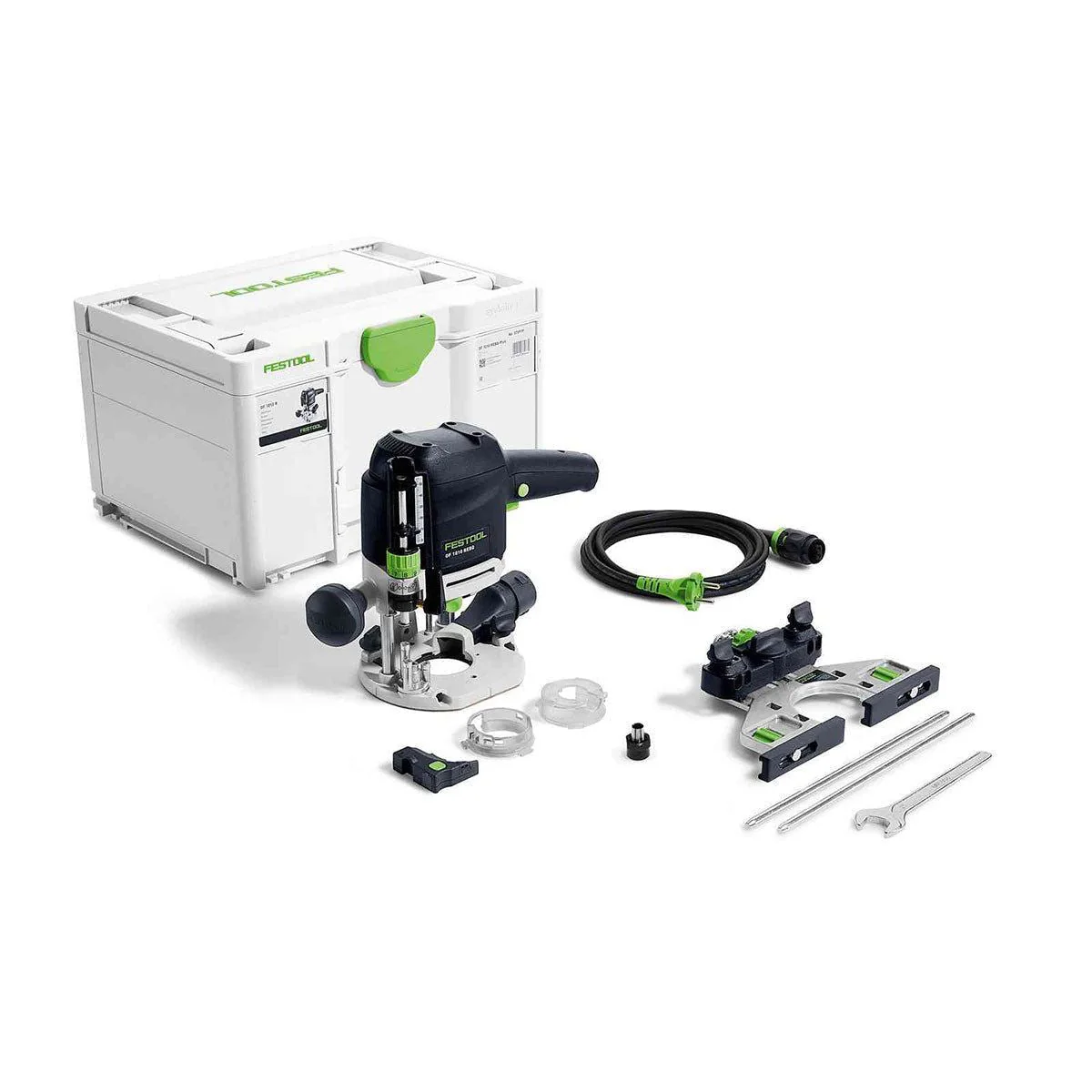

Festool OF 1010 REBQ-Plus 230V GB Router Cutter With Systainer - 578004
Features:
Handy: Thanks to the compact design and low weight.
In an instant: Quick and easy cutter changes.
Integrated: Chip extraction system directly integrated into the router table for D 27 and D 36 hose diameters.
Material specific: MMC electronics for optimal work and temperature monitoring.
Parallel side fence: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool free adjustable guidance jaws.
Precise: Simple routing depth adjustment, accurate to 1/10 mm.
Safer: Thanks to quick-acting brake and restart protection.
Steady: Torsionally rigid router table due to guide columns on both sides.
Unobstructed view: Clearly visible routing area.
Well lit: Thanks to the rechargeable LED work light in the base panel.
Areas of application:
Fashioning wooden joints with the VS 600
Grooving rear panels, recessing dovetail batons or routing plasterboard with the guide system (edging technology)
Producing rows of holes in cabinets using the hole series system LR 32
Recessing metal fittings
Rounding, chamfering, rebating and profiling edges
Comes With:
Light module LM-OF 1010 R
Systainer SYS3 M 237
Open ended spanner, WAF 19
Parallel side fence with fine adjuster SA-OF 1010/MFK
Plug it-power cable (4 m)
Ć 1/4" clamping collet (6.35 mm)
Ć 8 mm clamping collet
Product Specification:
Part Number: 578004
Barcode: 4014549436813
Power consumption: 1 010 W
Idle engine speed: 9 500 - 23 000 minā»Ā¹
Collet dia.: 6 - 8 mm
Routing stroke: 55 mm
Routing depth fine adjustment range: 8 mm
Bench opening: 50 mm
Dust extraction connection diameter: 27/36 mm
Cable length: 4 m
Product weight without accessories: 3.2 kg
Drive type: Mains
Routing: Uncertainty (vibration) K: 2 m/sĀ²
Routing: Uncertainty (noise) K: 3 dB
Routing: Total vibration average, Ah: 5.5 m/sĀ²
Routing: Standards series EN: 62841
Routing: A-weighted sound pressure level, LpA: 92 dB(A)
Routing: A-weighted sound power level, LWA: 103 dB(A)
Source : Tiedex.co.uk ā please refer to description and specification for full details of product**
