The Story
- Working range: 38m & 100m with detector
- 9+ hours runtime per charge
- Three versatile pendulum modes
- Magnetic bracket with 360° rotation
- Durable with IP54 rating
- Compatible with M12 batteries

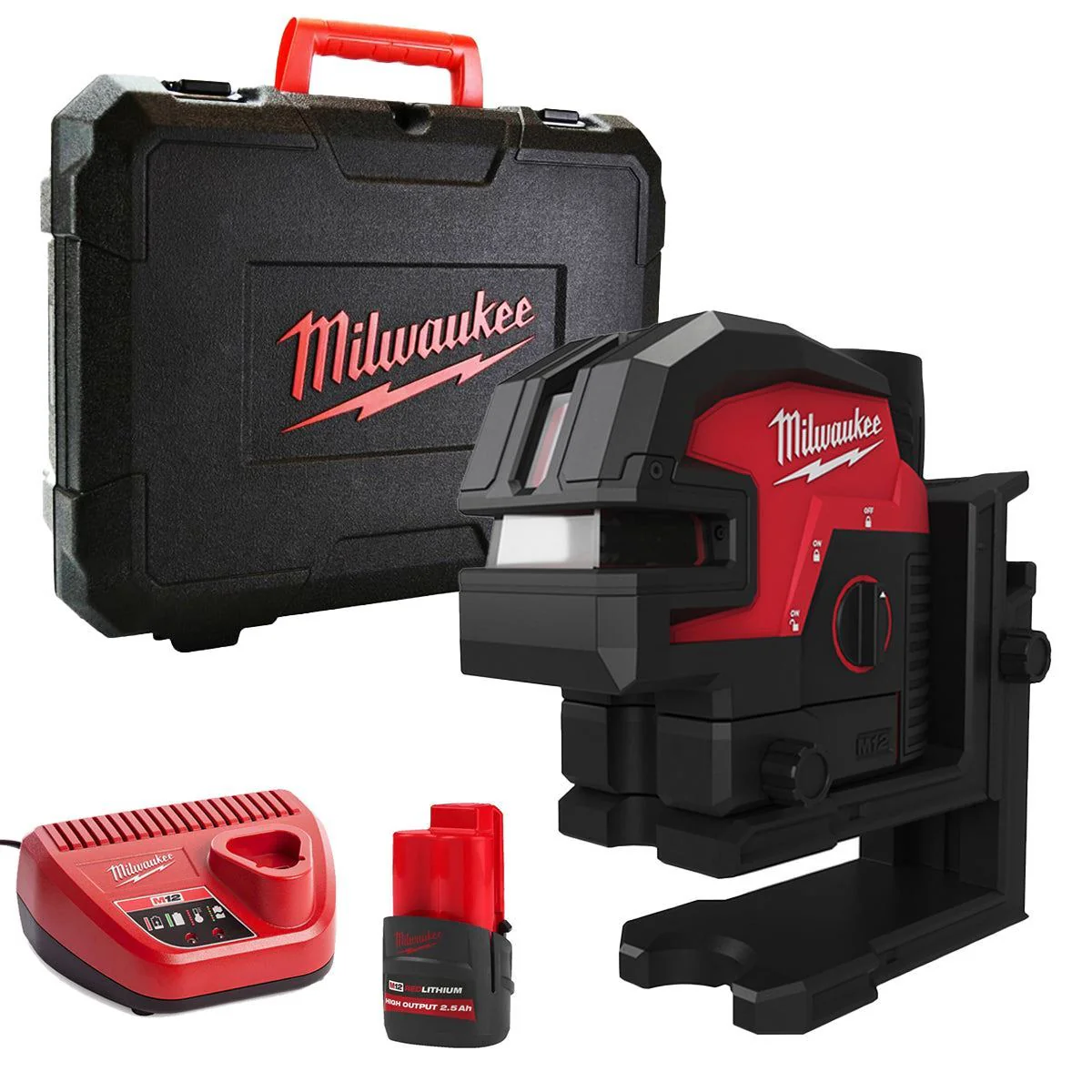

Milwaukee M12CLL4P-0C 12V Cross Line Laser with 1 x 2.5Ah Battery Charger & Case
The Milwaukee M12CLL4P-0C Cross Line Laser with 4 Points is a versatile tool designed for horizontal leveling, vertical alignment, and plumb and horizontal point transfer. Its high-intensity green beams provide a working range of 38 m, extendable to 100 m with a detector. With a runtime of over 9 hours on an M12 B3 battery pack, it ensures uninterrupted use. The 3-mode pendulum system supports manual, self-leveling, and transport lock modes for flexibility and durability. Its robust IP54-rated construction is water and debris-resistant, withstanding drops of up to 1 m, and the integrated magnetic bracket allows 360° rotation and secure mounting on various surfaces.
Features:
M12 green cross line laser with 4 points, provides an all-in-one functionality with horizontal levelling, vertical alignment, plumb point transfer from floor to ceiling and horizontal point transfer
High intensity green beams provide a working range of 38 m and up to 100 m with a detector
Provides all-day run time of 9+ hours with an M12 B3 battery pack
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8" tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod
The bracket also provides the laser 360° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
Flexible battery system: works with all MILWAUKEE M12 batteries
Comes With:
1 x M12HB2.5 2.5Ah Battery
1 x M12C12C ChargerÂ
1 x High Visibility Target Plate
1 x Track Clip
1 x Carry CaseÂ
Product Specification:
Part Number: 4933479202
Voltage: 12V
Battery Type: Li-ion
Accuracy [mm|m]: 0.3
Laser Line Colour: Green
Colour of plumb points: Green
IP Protection Class: IP54
Compatible Laser Detector: LLD50 / LRD100 (sold separately)
Laser clasification: Class 2
Laser projection: 1x horizontal, 1x vertical, 2x plumb points and 2x horizontal points
Self-Levelling Range: 4.0°
Self-Levelling Time: 3 Seconds
Working Range Detector: 50 / 100 Metres
Working Range Visible: 38.0m
Source : Tiedex.co.uk – please refer to description and specification for full details of product**
