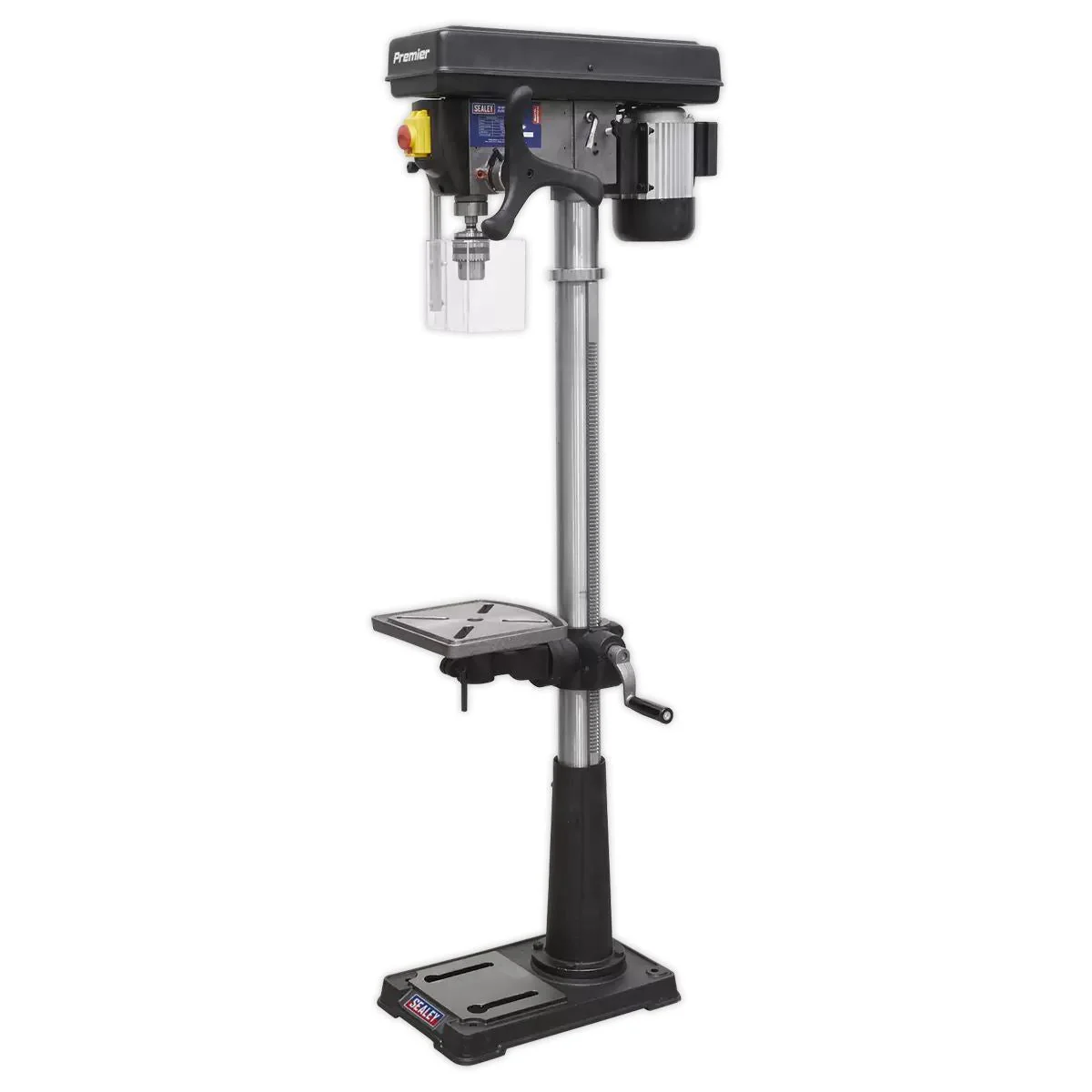

Sealey PDM170F Pillar Drill Floor 1610mm Height 230V

• Electrically inter-locked chuck guard
• Large sized square table
• Heavy-duty aluminium-bodied motor
• Long and reliable performance

Sealey PDM170F Pillar Drill Floor  1610mm Height 230V

Features:

One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
Features heavy-duty aluminium-bodied motor for long and reliable performance.
No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
Supplied with an electrically inter-locked chuck guard.
Large sized square table fitted with precision rack and pinion height adjustment.
16mm(5/8") Capacity chuck, MT2.
Height: 1610mm.
Spindle Centre to Column: 170mm.
Motor Power: 370W.
Column Diameter: Ø73mm.
Spindle Travel: 80mm.
Weight: 52kg.

Specification:

Part No: PDM170F
Barcode: 5054511285451
Base Size: 450 x 270mm
Collar Diameter: Ø55mm
Column Diameter: Ø73mm
Drilling Capacity (Chuck Size): 16mm
Integral Work Light: No
Maximum Distance Spindle to Base: 1255mm
Maximum Distance Spindle to Table: 770mm
Motor Power (Start): 370W(600W)
Nett Weight: 47kg
Number of Speeds: 16
Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1610mm
Speed Range: 190-3000rpm
Spindle Centre to Column: 170mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 340mm
Working Base Surface Size: 205 x 200mm
Working Table Surface Size: 254 x 254mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

Source : Tiedex.co.uk – please refer to description and specification for full details of product**
