Original: $192.28
-70%$192.28
$57.68The Story
This desktop switch offers an inexpensive alternative to fiber optics for the SOHO and small and medium business (SMB). Increasing network loads can be handled with the increased bandwidth of Gigabit Ethernet. The switch provides 24 Gigabit ports in the commonly used Ethernet format, so it works seamlessly with existing network cables (Cat5 or higher). Up to 2000 Mbps can be achieved in full-duplex mode, giving workstations bottleneck-free access to server data.
The latest hardware revision of the switch (C1) introduces the first ever energy-saving features in the networking arena. By sensing whether attached devices are ON or OFF and estimating the cable length, the switch is able to adjust its power consumption, for a total saving of up to 25%. Figure based on a scenario assuming that PCs are used for 10 hours a day, powered off 14 hours a day and connected to the switch using 20m cables.
This product is customized for use in the UK and Ireland.

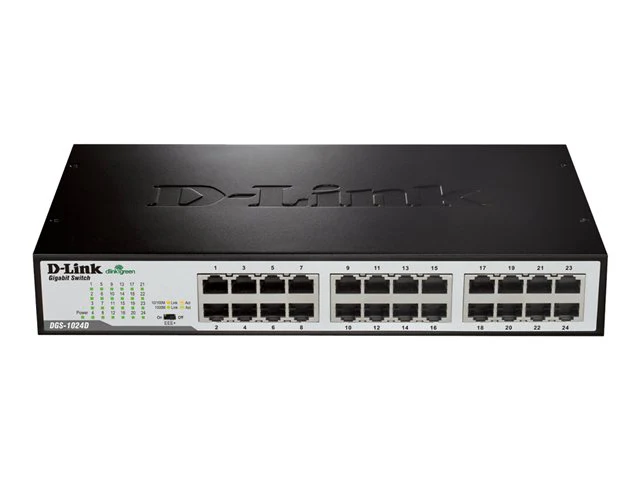

D-Link DGS 1024D - Switch - unmanaged - 24 x 10/100/1000 - desktop
Basic Specifications
- Manufacturer's Part Number
- DGS-1024D/B
- EAN
- 0790069269929
- Manufacturer Warranty
- 2-year warranty
- Weight
- 1.7 kg
- Product Description
- D-Link DGS 1024D - switch - 24 ports - unmanaged
- Model
- D-Link DGS 1024D
- Dimensions (WxDxH)
- 28 cm x 18 cm x 4.4 cm
- Localisation
- United Kingdom, Ireland
- Features
- Flow control, full duplex capability, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
- Power
- AC 120/230 V (50/60 Hz)
- Device Type
- Switch - 24 ports - unmanaged
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- MAC Address Table Size
- 8K entries
- Subtype
- Gigabit Ethernet
- Enclosure Type
- Desktop
- Ports
- 24 x 10/100/1000
- Interfaces
- Gigabit Ethernet
General
- Device Type
- Switch - 24 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000
- MAC Address Table Size
- 8K entries
- Features
- Flow control, full duplex capability, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Built-in Devices
- Led panel
- Status Indicators
- Port transmission speed, power, link/activity
Dimensions & Weight
- Width
- 28 cm
- Depth
- 18 cm
- Height
- 4.4 cm
- Weight
- 1.7 kg
Miscellaneous
- Compliant Standards
- Plug and Play, FCC Class A certified, CSA, VCCI Class A ITE, FCC
- Localisation
- United Kingdom, Ireland
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 27.5 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95%
