$1,781.99
Original: $5,939.98

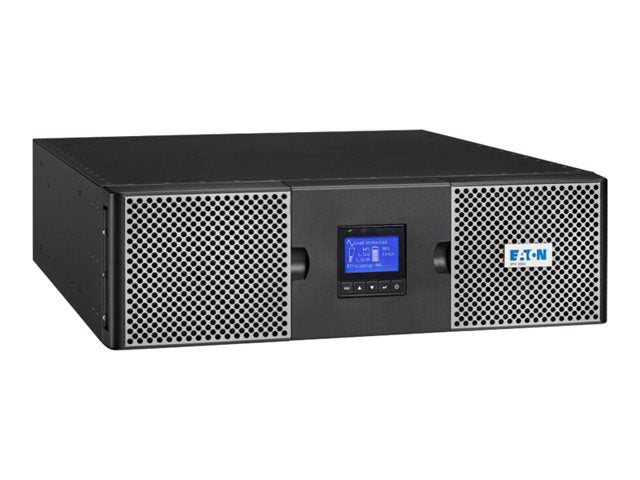

-70%TieDex UK Eaton 9PX 3000i RT3U Marine - UPS - 3000 Watt - 3000 VA - Lead Acid—
$5,939.98
$1,781.99The Story
Eaton 9PX 3000i RT3U Marine - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 3000 Watt - 3000 VA - Lead Acid - 9 Ah - RS-232, USB - output connectors: 5
Basic Specifications
- Manufacturer's Part Number
- 9PX3000IRTM
- EAN
- 0743172081667
- Product Description
- Eaton 9PX 3000i RT3U Marine - UPS - 3000 Watt - 3000 VA - Lead Acid
- Model
- Eaton 9PX 3000i RT3U Marine
- Input Connectors
- 1 x power IEC 60320 C20 16A
- Device Type
- UPS - rack-mountable / external
- Networking
- RS-232, USB
- Battery
- Lead Acid - 9 Ah
- Environmental Standards
- ENERGY STAR
- Power Capacity
- 3000 Watt / 3000 VA
- Output Voltage
- AC 200/208/220/230/240 V
- Output connectors
- 4 x power IEC 60309 10A ¦ 1 x power IEC 60309 16A
- Input Voltage
- AC 200/208/220/230/240 V
General
- Device Type
- UPS - rack-mountable / external
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x management (USB) ¦ 1 x management (RS-232)
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 96% (non-condensing)
- Sound Emission
- 47 dBA
Miscellaneous
- Features
- LCD display, internal bypass
- Compliant Standards
- CISPR 22 Class B, ICES-003, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1778, IEC 62040-3, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1, FCC Part 15 Class B
Battery
- Technology
- Lead Acid
- Voltage Provided
- 12 V
- Capacity
- 9 Ah
- Features
- Maintenance free, sealed
Environmental Standards
- ENERGY STAR
- Yes
Power Device
- UPS Technology
- On-line
- Input Voltage
- AC 200/208/220/230/240 V
- Input Voltage Range
- AC 100 - 276 V
- Frequency Provided
- 50 - 60 Hz
- Input Voltage Margin
- + 15% / - 20%
- Frequency Required
- 40 - 70 Hz
- Input Connectors
- 1 x power IEC 60320 C20 16A
- Power Output Connectors Details
- 4 x power IEC 60309 10A ¦ 1 x power IEC 60309 16A
- Output Voltage
- AC 200/208/220/230/240 V 50 - 60 Hz
- Power Capacity
- 3000 Watt / 3000 VA
- Output Waveform
- Sinewave
- Circuit Protection
- Fuse
- Efficiency
- 94%, 89% Battery mode
- Power Factor (PF)
- 1.0
- Total Harmonic Distortion (THD)
- 3 %
Sustainability Information
- ENERGY STAR
- Yes
