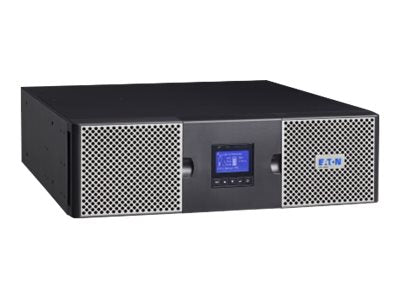

TieDex UK Eaton 9PX 3000i RT3U - UPS - 3000 Watt - 3000 VA

Eaton 9PX 3000i RT3U - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 3000 Watt - 3000 VA - 1-phase - 9 Ah - RS-232, USB - output connectors: 10 - PFC - 3U - 19" - black/silver

Basic Specifications

Manufacturer's Part Number

9PX3000IRT3UBS

EAN

3553340620256

Manufacturer Warranty

3-year warranty

Product Description

Eaton 9PX 3000i RT3U - UPS - 3000 Watt - 3000 VA

Model

Eaton 9PX 3000i RT3U

Colour

Black/silver

Weight

27.4 kg

Input Connectors

1 x power IEC 60320 C20

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Product Type

UPS

Networking

RS-232, USB

Battery

Lead Acid - 9 Ah

Dimensions (WxDxH)

44 cm x 48.5 cm x 13 cm

Environmental Standards

ENERGY STAR

Included Accessories

2 mounting brackets, BS input cord

Power Capacity

3000 Watt / 3000 VA

Output Voltage

AC 200/208/220/230/240 V ± 1%

Output connectors

8 x power IEC 60320 C13 10A ¦ 2 x power IEC 60320 C19 16A

Run Time (Up To)

3 min at full load

Input Voltage

AC 200/208/220/230/240 V

Batteries Qty

6

Rack Size

19" - 3U

Input Wiring

1-phase

General

Device Type

UPS - Power Factor Correction (PFC) - rack-mountable / external

Height (Rack Units)

3U

Rack Size

19"

Colour

Black/silver

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (USB) ¦ 1 x management (RS-232) ¦ 1 x remote power (on/off) - terminal block ¦ 1 x relay output - terminal block ¦ 3 x dry contact output ¦ 1 x dry contact input

Expansion Slots

1 (total) / 1 (free) x Expansion Slot

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

40 dB

Dimensions & Weight

Width

44 cm

Depth

48.5 cm

Height

13 cm

Weight

27.4 kg

Miscellaneous

Included Accessories

2 mounting brackets, BS input cord

Cables Included

2 x power cable (IEC) - external ¦ USB cable - external ¦ Serial cable - external

Rack Mounting Kit

Included

Features

LCD display, internal bypass, automatic shut down

Compliant Standards

FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1

Software / System Requirements

Software Included

Intelligent Power Manager, Eaton Intelligent Power Protector

Battery

Quantity

6

Technology

Lead Acid

Voltage Provided

12 V

Capacity

9 Ah

Manufacturer Warranty

Service & Support

Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Standards

ENERGY STAR

Yes

Power Device

UPS Technology

On-line

Input Voltage

AC 200/208/220/230/240 V

Input Voltage Range

AC 176 - 276 V

Frequency Provided

50/60 Hz

Input Wiring

1-phase

Frequency Required

40 - 70 Hz

Input Connectors

1 x power IEC 60320 C20

Power Output Connectors Details

8 x power IEC 60320 C13 10A ¦ 2 x power IEC 60320 C19 16A

Output Voltage

AC 200/208/220/230/240 V ± 1% - 50/60 Hz

Power Capacity

3000 Watt / 3000 VA

Output Waveform

Sinewave

Efficiency

94%, 98% Eco mode

Power Factor (PF)

0.99

Sustainability Information

ENERGY STAR

Yes
