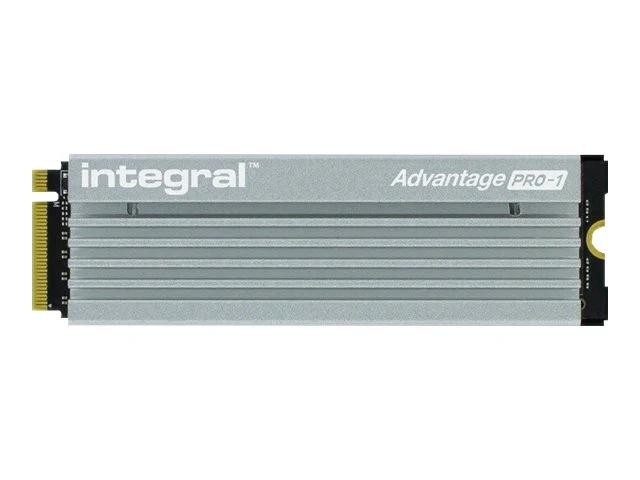

TieDex UK Integral Advantage PRO-1 - SSD - 1 TB - PCIe 4.0 x4 (NVMe)

Integral Advantage PRO-1 - SSD - encrypted - 1 TB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe) - TCG Opal Encryption 2.0 - integrated heatsink

Basic Specifications

Manufacturer's Part Number

INSSD1TM2280GEN4AP1XHS

EAN

5055288448551

Manufacturer Warranty

5-year warranty

Weight

37.8 g

Product Description

Integral Advantage PRO-1 - SSD - 1 TB - PCIe 4.0 x4 (NVMe)

Model

Integral Advantage PRO-1

Dimensions (WxDxH)

24 mm x 80 mm x 10 mm

Features

Phison E18 controller, TCG Pyrite, TRIM support, shock resistant, S.M.A.R.T.

Type

Solid state drive - internal

Capacity

1 TB

Form Factor

M.2 2280

Interface

PCIe 4.0 x4 (NVMe)

NAND Flash Memory Type

Triple-level cell (TLC)

Hardware Encryption

Yes

Integrated Heatsink

Yes

General

Device Type

Solid state drive - internal

Capacity

1 TB

Hardware Encryption

Yes

NAND Flash Memory Type

Triple-level cell (TLC)

Integrated Heatsink

Yes

Form Factor

M.2 2280

Interface

PCIe 4.0 x4 (NVMe)

Features

Phison E18 controller, TCG Pyrite, TRIM support, shock resistant, S.M.A.R.T.

Width

24 mm

Depth

80 mm

Height

10 mm

Weight

37.8 g

Miscellaneous

Included Accessories

Metal case

Compliant Standards

FCC, RoHS, UKCA

Manufacturer Warranty

Service & Support

Limited warranty - 5 years / 700 TBW

Dimensions & Weight (Shipping)

Shipping Width

6.5 cm

Shipping Depth

1.2 cm

Shipping Height

10 cm

Shipping Weight

73.2 g

Power

Power Consumption

6.7 Watt (write) ¦ 6.6 Watt (read)

Performance

SSD Endurance

700 TB

Internal Data Rate

7200 MBps (read) / 6000 MBps (write)

4KB Random Read

750000 IOPS

4KB Random Write

1000000 IOPS

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Min Storage Temperature

-40 °C

Max Storage Temperature

85 °C

Humidity Range Operating

0 - 90%

Expansion & Connectivity

Interfaces

1 x PCI Express 4.0 x4 (NVMe) - M.2 Card

Compatible Bay

M.2 2280

Reliability

MTBF

1,600,000 hours
